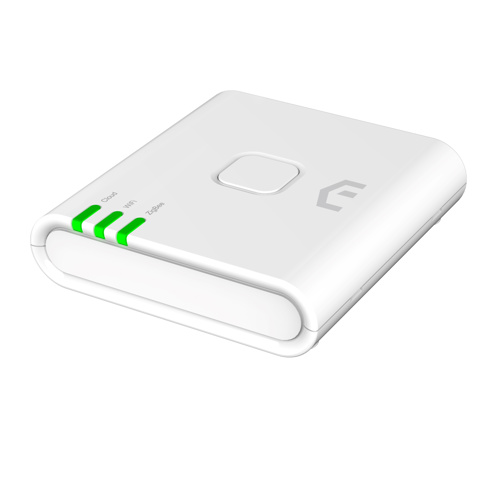

Unisenza Plus Gateway
Unisenza Plus Gateway connects up to 100 end devices
- Integrated Zigbee 3.0 technology
- Connects up to 100 devices
- Easy installation
- Wireless and app integration
- Extended 5-year warranty
Product description
The Myson Unisenza Plus Gateway is the central unit for connecting several Unisenza Plus devices to the cloud and an Internet router with a Wi-Fi or Ethernet cable connection. It is Zigbee 3.0 compatible with other products from the Unisenza Plus range, and connects up to 100 end devices such as intelligent room thermostats, electronic thermostatic heads (ETH) for radiators, receivers, sensors, etc. An extended warranty of 5 years applies to all Unisenza Plus products.
Technical Specifications
| Bus system KNX | No |
|---|---|
| Bus system KNX-RF (Radio Frequent) | No |
| Bus system KNX Secure | No |
| Bus system KNX Secure-RF (Radio Frequency) | No |
| Bus system radio frequent | No |
| Bus system LON | No |
| Bus system Powernet | No |
| Other bus systems | Zigbee |
| Radio frequent bidirectional | No |
| Model | Multiple interface |
| Mounting method | Surface mounted |
| Number of channels | 1 |
| Max. number of devices per channel | 100 |
| Demounting protection | No |
| With LED indication | Yes |
| Updateable | Yes |
| Operating voltage [V] | 5 - 5 |
| Voltage type | DC |
| Power consumption [W] | 3 |
| Protocol | TCP/IP |
| Provider dependent | Yes |
| Visualization | No |
| Web-Server | No |
| Radio interface | No |
| IR interface | No |
| Degree of protection (IP) | IP30 |
| Height [mm] | 95 |
| Width / Length [mm] | 90 |
| Depth [mm] | 25 |
| Weight [kg] | 0.15 |
