Hi-Line RC
Myson Hi-Line fan convector utilises unused space above a door
- Rapid heating
- Compatible with lower water temperatures
- Ideal for limited wall space
- Discreet placement
- Automatic room temperature control
Product description

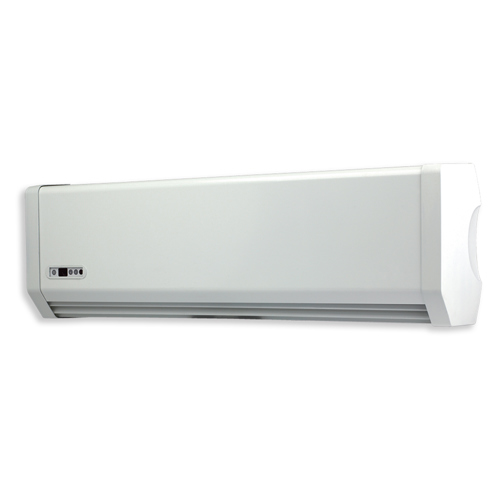

Myson Hi-Line is a range of high level, wall mounted fan convectors that can utilise unused space above a door. Designed and tested to the highest standards, the range includes different models with varied performance, all compatible with lower water temperatures. Hi-Line RS provides rapid heat from above, and is perfect for domestic and commercial applications such as restaurants and offices. Fitted with digital controls and supplied with a handheld remote.
Technical Specifications
| Mounting method | Wall surface mounted |
|---|---|
| Suitable for heating | Yes |
| Suitable for cooling | No |
| With separate batteries | Yes / No |
| Heat emission 20 °C - 75/65 high [W] | 1702 - 4959 |
| Heat emission 20 °C - 75/65 medium [W] | 1292 - 4380 |
| Heat emission 20 °C - 75/65 low [W] | 930 - 3468 |
| Heat emission 20 °C - 90/70 high [W] | 2065 - 6014 |
| Heat emission 20 °C - 90/70 medium [W] | 1568 - 5314 |
| Heat emission 20 °C - 90/70 low [W] | 1128 - 4207 |
| Air volume high [m³/h] | 133 - 431 |
| Air volume medium [m³/h] | 105 - 371 |
| Air volume low [m³/h] | 81 - 285 |
| Sound pressure level high [dB(A)] | 37.2 - 45.6 |
| Sound pressure level medium [dB(A)] | 30.8 - 38.7 |
| Sound pressure level low [dB(A)] | 23.4 - 33.3 |
| With electric heating element | No |
| Standard colour | Yes |
| Colour | White |
| RAL-number | 9016 |
| Degree of gloss | Glossy |
| Nominal diameter heating | 1/2 inch (15) |
| Water connections, left | No |
| Front exhaust | Yes |
| With fresh air connection | No |
| With grid | Yes |
| Material grid | Steel |
| Grid colour | White |
| RAL-number grid | 9016 |
| With level switch | No |
| With built-in position controller | No |
| With filter | No |
| With drain valve | No |
| With de-aerator | No |
| Length [mm] | 554 - 1171 |
| With legs | No |
| With drip-tray | No |
| Connection voltage [V] | 230 |
| Frequency | 50 Hz |
| Height [mm] | 277 |
| Depth [mm] | 170 |
| Built-in depth adjustable | No |
| Weight [kg] | 18 |
