Kickspace
Myson Kickspace plinth heater is functional and discreet
- Great space-saving solution
- Hydronic, electric & dual mode options
- Compatible with lower water temperatures
- Low voltage model for bathrooms
- Available in multiple finishes
Product description

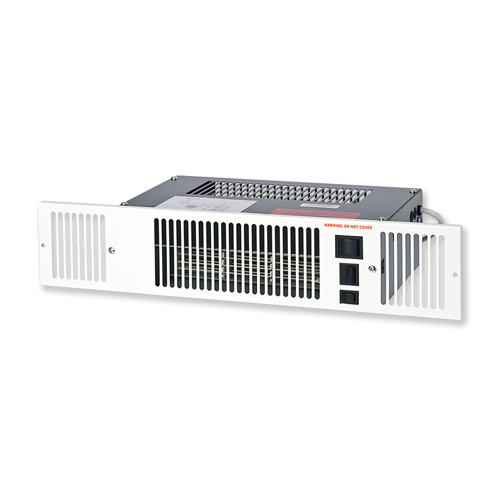

Myson's innovative Kickspace® plinth heaters provide a space-saving heating solution for kitchens where vital wall space is often taken up by kitchen units, or a traditional wall-mounted radiator. The discrete Kickspace® can be fitted easily under units allowing more interior design freedom, and providing rapid heat through a high-surface-area heat exchanger. A Myson Kickspace® plinth heather is a great space-saving solution. Various models are available to suit hyronic and electric systems. The Kickspace® 500 Duo Eco model combines the advantages of both hydronic and electric models, with the flexibility to switch between central heating and electric modes. The Kickspace® 600-12V is a unique low-voltage hydronic model, which means you get all the advantages of Kickspace® but it can be used in areas of high humidity, such as bathrooms and en-suites.
Technical Specifications
| Mounting method | Floor built-in |
|---|---|
| Suitable for heating | Yes |
| Suitable for cooling | No |
| With separate batteries | No / Yes |
| Heat emission 20 °C - 75/65 high [W] | 876 - 2192 |
| Heat emission 20 °C - 75/65 low [W] | 755 - 1707 |
| Heat emission 20 °C - 90/70 high [W] | 1062 - 2649 |
| Heat emission 20 °C - 90/70 low [W] | 905 - 2012 |
| Air volume high [m³/h] | 71 - 210 |
| Air volume low [m³/h] | 68 - 139 |
| Sound pressure level high [dB(A)] | 31.4 - 49.8 |
| Sound pressure level low [dB(A)] | 21.8 - 29.4 |
| With electric heating element | Yes / No |
| Standard colour | Yes |
| Colour | Other |
| Nominal diameter heating | 1/2 inch (15) |
| Water connections, left | Yes |
| Front exhaust | Yes |
| With fresh air connection | No |
| With grid | Yes |
| Material grid | Steel |
| Grid colour | White |
| RAL-number grid | 9016 |
| With level switch | No |
| With built-in position controller | No |
| With filter | No |
| With drain valve | No |
| With de-aerator | Yes |
| Length [mm] | 496 - 760 |
| With legs | No |
| With drip-tray | No |
| Connection voltage [V] | 230 |
| Frequency | 50 Hz |
| Height [mm] | 80 - 101 |
| Depth [mm] | 203 - 309 |
| Built-in depth adjustable | No |
| Built-in depth [mm] | 301 - 301 - 293 - 293 - 195 - 195 |
| Weight [kg] | 4.1325 - 9 |
