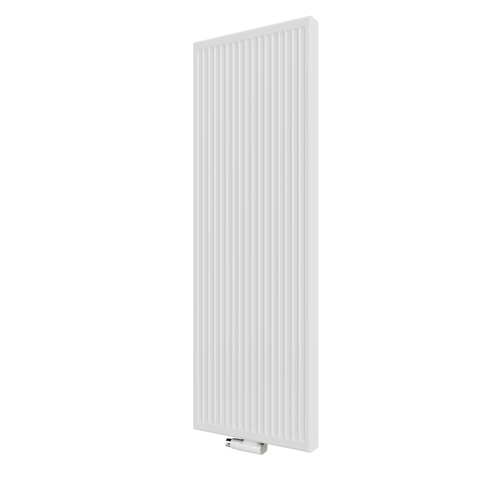

Vertical
An elegant addition to any interior
- Sleek design
- High space efficiency
- High heating power
- Optional towel bar
- Variety of colours
Product description
Vertical is a classic vertical panel radiator that’s slim and discreet for optimal use of wall space in any room. This panel radiator is small in width but great in heating power. A towel rail is available for extra functionality.
Technical Specifications
| Material | Steel |
|---|---|
| Type | 10 - 20 - 21 - 22 |
| Surface structure front side panel | Profiled |
| Water-bearing front panel | Yes |
| Suitable for damp space | No |
| Height [mm] | 1800 - 1950 |
| Length [mm] | 300 - 750 |
| Depth [mm] | 50 - 105 |
| Heat emission according to EN 442 20 °C - 55/45 [W] | 1.054 - 960 |
| Heat emission according to EN 442 20 °C - 75/65 [W] | 1.036 - 968 |
| Heat emission according to EN 442 20 °C - 70/40 [W] | 495 - 1758 |
| Heat emission according to EN 442 laboratory | Yes |
| N-exponent | 1.2787 - 1.334 |
| Max. operating pressure [bar] | 0.01 |
| Water content [l] | 3.78 - 13.05 |
| Standard colour | Yes |
| Colour | White |
| RAL-number | 9016 |
| Degree of gloss | Glossy |
| Welded-on strips | No |
| With side lining | Yes / No |
| With top cladding | No |
| Collapsible | No |
| Number of standard connections | 4 |
| Connection 1, bottom left | Inlet flow |
| Connection 4, top left | Inlet flow |
| Connection TC, top center | Double connection, inlet-outlet |
| Connection 5, top right | Outlet flow |
| Connection 8, bottom right | Outlet flow |
| Connection BC, bottom center | Double connection, inlet-outlet |
| Thread size (inch) | 1/2 inch |
| Thread connection | Internal thread |
| With single-point connection | No |
| With de-aeration connection | Yes |
| With de-aerator | Yes |
| With drain possibility (connection) | Yes |
| With drain valve | No |
| With integrated thermostatic valve | No |
| With thermostat button | No |
| With wall brackets | Yes |
| Suitable for electrical element | No |
| With electrical element | No |
| With blind stops | Yes |
| With mounting material | Yes |
| Suitable for towel holder | Yes |
| With towel holder | No |
| Recessed towel holder | No |
| Suitable for shelf | No |
| Factor K | 5.728 - 17.284 |
| Watt Absolute [W] | 852 - 3084 |
| Heat emission according to EN 442 20 °C - 45/35 [W] | 411 - 1301 |
| Heat emission according to EN 442 20 °C - 60/45 [W] | 507 - 1701 |
| Heat emission according to EN 442 20 °C - 90/70 [W] | 1234 - 3902 |
| Heat emission according to EN 442 20 °C – 55/45 [Btu/h] | 1512 - 5347 |
| Heat emission according to EN 442 20 °C – 75/65 [Btu/h] | 2907 - 10523 |
| Max. Operating Temperature [°C] | 110 |
| Mounting Direction | Vertical |
| Number of wall brackets | 3 |
| CO2/Kg equivalent per kg of material | 2.8 |
| CO2/Kg equivalent per KW of heat delivered by the articles | 54.66 |
| Weight [kg] | 16.54 - 73.68 |
