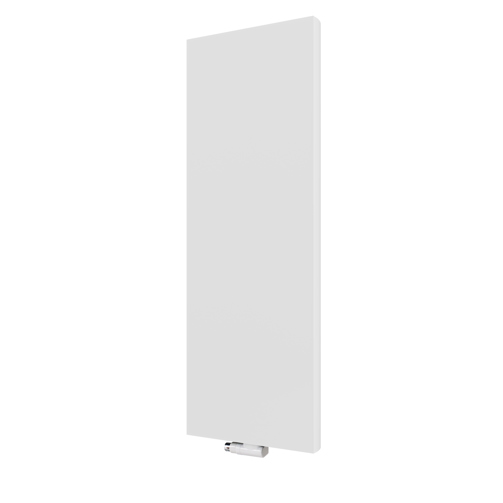

Kos V
Timeless elegance
- Elegant timeless design
- Perfect solution for limited wall space
- High-quality stainless steel towel rail
- Available in various colours
- Blends into any interior
Product description
Kos V has a flat front that creates the impression of timeless elegance. The rounded, flat side panels ensure clean lines from all sides. Like tall interior furnishings, this designer radiator is not only intended to provide a sense of height, it is also a powerful heat source in areas where wall space is at a premium. The standard colour is RAL 9016 white, but many other colours and finishes are available on request. For increased functionality in the bathroom and kitchen, a stainless steel towel bar is available as an accessory. Complete with brackets, including set of screws and dowels, with mounting instructions, side covers with installation clips, 3 brass blanking plugs and air-vent.
Technical Specifications
| Material | Steel |
|---|---|
| Type | 21 - 22 |
| Surface structure front side panel | Flat smooth |
| Water-bearing front panel | No |
| Suitable for damp space | No |
| Height [mm] | 1800 - 1950 |
| Length [mm] | 300 - 750 |
| Depth [mm] | 82 - 107 |
| Heat emission according to EN 442 20 °C - 55/45 [W] | 1.139 - 985 |
| Heat emission according to EN 442 20 °C - 75/65 [W] | 1.008 - 955 |
| Heat emission according to EN 442 20 °C - 70/40 [W] | 553 - 1680 |
| Heat emission according to EN 442 laboratory | Yes |
| N-exponent | 1.2876 - 1.3143 |
| Max. operating pressure [bar] | 0.01 |
| Water content [l] | 4.8 - 13.05 |
| Standard colour | Yes |
| Colour | White |
| RAL-number | 9016 |
| Degree of gloss | Glossy |
| Welded-on strips | No |
| With side lining | Yes |
| With top cladding | No |
| Collapsible | Yes |
| Number of standard connections | 4 |
| Connection 1, bottom left | Inlet flow |
| Connection 4, top left | Inlet flow |
| Connection TC, top center | Double connection, inlet-outlet |
| Connection 5, top right | Outlet flow |
| Connection 8, bottom right | Outlet flow |
| Connection BC, bottom center | Double connection, inlet-outlet |
| Thread size (inch) | 1/2 inch |
| Thread connection | Internal thread |
| With single-point connection | No |
| With de-aeration connection | Yes |
| With de-aerator | Yes |
| With drain possibility (connection) | Yes |
| With drain valve | No |
| With integrated thermostatic valve | No |
| With thermostat button | No |
| With wall brackets | Yes |
| Suitable for electrical element | No |
| With electrical element | No |
| With blind stops | Yes |
| With mounting material | Yes |
| Suitable for towel holder | Yes |
| With towel holder | No |
| Recessed towel holder | No |
| Suitable for shelf | No |
| Factor K | 6.2 - 17.449 |
| Watt Absolute [W] | 955 - 2928 |
| Heat emission according to EN 442 20 °C - 45/35 [W] | 286 - 1293 |
| Heat emission according to EN 442 20 °C - 60/45 [W] | 536 - 1308 |
| Heat emission according to EN 442 20 °C - 90/70 [W] | 1348 - 3879 |
| Heat emission according to EN 442 20 °C – 55/45 [Btu/h] | 1689 - 5118 |
| Heat emission according to EN 442 20 °C – 75/65 [Btu/h] | 3258 - 9990 |
| Max. Operating Temperature [°C] | 110 |
| Mounting Direction | Vertical |
| Number of wall brackets | 3 |
| Water Content per Meter [l] | 4.8 - 13.05 |
| CO2/Kg equivalent per kg of material | 2.8 |
| CO2/Kg equivalent per KW of heat delivered by the articles | 54.66 |
| Weight [kg] | 31.72 - 85.91 |
| Weight per Meter [kg] | 30.5 - 83.45 |
