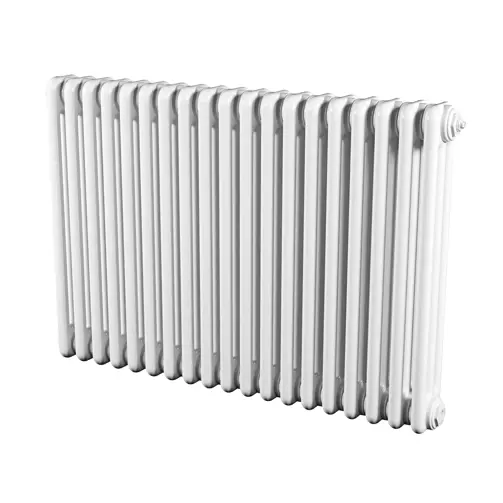

Column
Highly efficient and durable column radiator.
- Retro design
- Optimal heat distribution
- Electronic thermostat
- Wireless control
- Hydronic and electric options
Product description
The Myson Column radiator marries style and efficiency, utilizing laser welding to minimize friction and corrosion. Suitable for diverse settings, including commercial and domestic projects, these radiators offer a variety of sizes and colors, adding a sophisticated touch to any interior.
Technical Specifications
| Material | Steel |
|---|---|
| Number of elements | 6 - 36 |
| Height [mm] | 300 - 2000 |
| Length [mm] | 300 - 1800 |
| Depth [mm] | 63 - 139 |
| Depth from wall to front side [mm] | 31 - 41 |
| Heat emission according to EN 442 20 °C - 55/45 [W] | 1.011 - 994 |
| Heat emission according to EN 442 20 °C - 75/65 [W] | 1.009 - 997 |
| N-exponent | 1.227 - 1.3289 |
| Max. operating pressure [bar] | 0.01 |
| Water content [l] | 9 - 42 |
| Colour | White |
| RAL-number | 9016 |
| Mounting method | Wall/floor |
| Number of standard connections | 4 |
| Connection 2, left side low | Inlet/outlet flow |
| Connection 3, left side top | Inlet flow |
| Connection 6, right side top | Inlet flow |
| Connection 7, right side low | Inlet/outlet flow |
| Thread size (inch) | 1/2 inch |
| Thread connection | Internal thread |
| With de-aerator | Yes |
| With drain valve | Yes |
| With consoles | Yes |
| With blind stops | No |
| With mounting material | Yes |
| With integrated thermostatic valve | No |
| With support for seat | No |
| Factor K | 3.505 - 17.613 |
| Watt Per Section [W] | 35.4 - 146.83 |
| Max. Operating Temperature [°C] | 110 |
| Variant | 4 - 3 - 2 |
| Mounting Direction | Horizontal - Vertical |
| Number of wall brackets | 4 - 6 |
| Weight [kg] | 2.45 - 63.555 |
