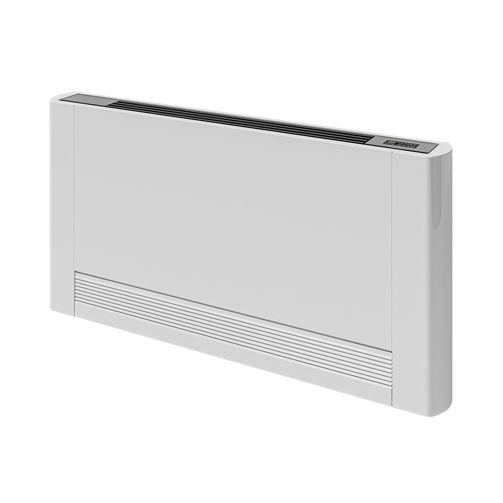

iVector S2
Myson iVector S2 fan convector is great for both heating and cooling
- Modern, compact design
- Intelligent heating & cooling functions
- Low temperature compatibility
- Quick temperature response
- Flexible installation options
Product description
Myson iVector S2 is a whisper-quiet fan convector with an attractive, compact design. The iVector S2 can provide high heating performance whilst operating at low temperatures and with low water content. This provides efficient energy use without sacrificing outputs. When combined with a reversible heat pump or a separate cooling source, Myson iVector S2 can offer both heating and cooling functions, making it a perfect solution for both commercial and domestic use. The iVector S2 offers many installation options such as in-wall, on-wall and ceiling mounted, which allows for great flexibility in interior design, with energy-efficient advantages.
Technical Specifications
| Mounting method | Wall built-in - Wall surface mounted |
|---|---|
| Suitable for heating | Yes |
| Suitable for cooling | Yes |
| With separate batteries | No / Yes |
| Heat emission 20 °C - 75/65 high [W] | 0.71 - 9.54 |
| Heat emission 20 °C - 75/65 medium [W] | 0.62 - 6.33 |
| Heat emission 20 °C - 75/65 low [W] | 0.38 - 3.34 |
| Heat emission 20 °C - 90/70 high [W] | 0.66 - 11.46 |
| Heat emission 20 °C - 90/70 medium [W] | 0.63 - 7.63 |
| Heat emission 20 °C - 90/70 low [W] | 0.44 - 5.27 |
| Cooling capacity 25 °C - 6/12 perceived high [W] | 0.46 - 2.95 |
| Cooling capacity 25 °C - 6/12 perceived medium [W] | 0.37 - 1.92 |
| Cooling capacity 25 °C - 6/12 perceived low [W] | 0.25 - 1.29 |
| Cooling capacity 25 °C - 7/12 perceived high [W] | 0.46 - 2.94 |
| Cooling capacity 25 °C - 7/12 perceived medium [W] | 0.36 - 2.01 |
| Cooling capacity 25 °C - 7/12 perceived low [W] | 0.23 - 1.4 |
| Cooling capacity according to EN 16430 26 °C - 17/19 perceived high [W] | 0.24 - 1.36 |
| Cooling capacity according to EN 16430 26 °C - 17/19 perceived medium [W] | 0.18 - 0.94 |
| Cooling capacity according to EN 16430 26 °C - 17/19 perceived low [W] | 0.11 - 0.66 |
| Air volume high [m³/h] | 132 - 663 |
| Air volume medium [m³/h] | 91 - 479 |
| Air volume low [m³/h] | 46 - 364 |
| Sound pressure level high [dB(A)] | 51 - 57 |
| Sound pressure level medium [dB(A)] | 44 - 48 |
| Sound pressure level low [dB(A)] | 33 - 37 |
| With electric heating element | No |
| Standard colour | Yes |
| Colour | White |
| RAL-number | 9003 |
| Degree of gloss | Glossy |
| Nominal diameter cooling | 3/4 inch (20) |
| Nominal diameter heating | 3/4 inch (20) |
| Water connections, left | Yes |
| Front exhaust | No |
| With fresh air connection | No |
| With grid | Yes |
| Material grid | Stainless steel |
| Grid colour | White |
| RAL-number grid | 9003 |
| With level switch | Yes |
| With built-in position controller | Yes / No |
| With filter | Yes |
| With drain valve | Yes |
| With de-aerator | Yes |
| Length [mm] | 525 - 1535 |
| With legs | No |
| With drip-tray | Yes / No |
| Connection voltage [V] | 230 |
| Frequency | 50 Hz |
| Width [mm] | 525 - 1535 |
| Height [mm] | 576 - 639 |
| Depth [mm] | 126 - 131 |
| Built-in depth adjustable | No |
| Built-in depth [mm] | 126 - 126 |
| Surface protection grid | Lacquered - Other |
